📕CONTENT:

   · The Hidden Energy Drain in Cooling Tower Operations

   · Why EC Technology Is a Game-Changer for Cooling Towers?

   · Core Specifications Comparison: 3 Flagship Krubo EC Axial Fans for Cooling Towers

   · Model Deep Dive: Unique Strengths & Ideal Use Cases

   · Beyond the Product: The Krubo Advantage for Cooling Tower Operators

   · Lower Total Cost of Ownership, Year After Year

   · Offer end-to-end project support

The Hidden Energy Drain in Cooling Tower Operations

For industrial and commercial thermal management systems, cooling towers serve as the core of heat rejection — yet their fan assemblies often remain the largest source of avoidable operating cost. Per ASHRAE industry benchmarks, fan power consumption accounts for 60% or more of a cooling tower’s total energy use. Traditional fixed-speed AC fans run at full capacity regardless of real-time heat load, and most facilities rely on damper throttling to adjust airflow, which wastes massive amounts of energy through mechanical resistance during off-peak hours, cold seasons, or partial-load operation.

Compounding this, outdoor cooling tower environments create persistent operational challenges: constant drift moisture from circulating water, airborne industrial dust, corrosive mist in chemical parks, and wide seasonal temperature swings all accelerate motor winding degradation and mechanical wear. For AC motor fans, carbon brush wear and bearing fatigue mean quarterly maintenance is standard, and unplanned downtime can disrupt entire production lines or data center cooling loops, carrying far higher costs than the parts themselves.

Why EC Technology Is a Game-Changer for Cooling Towers

Unlike conventional AC motors, EC (Electronically Commutated) motors integrate built-in drive electronics, enabling precise stepless speed control and inherently higher energy conversion efficiency. For cooling tower operators, this technology delivers four tangible operational and financial benefits tailored to real-world site conditions:

1. Load-matched energy savings:

Fans automatically adjust speed based on real-time wet-bulb temperature and return water heat load, eliminating damper-related energy waste. Field data from Krubo cooling tower retrofit projects across the Middle East and Southeast Asia shows energy reductions of 35% to 55% compared to fixed-speed AC alternatives, with the fastest return on investment in variable-load environments.

2. Robust outdoor compatibility:

Wide voltage tolerance and extended operating temperature ranges ensure stable performance even in harsh outdoor climates, from sub-zero winter conditions in northern regions to 60℃+ peak summer ambient heat in desert zones. Soft-start functionality also eliminates inrush current shock, reducing stress on on-site power grids.

3. Reduced maintenance overhead:

The brushless EC motor design eliminates wearing carbon brushes entirely, while optimized low-speed operation reduces mechanical stress on bearings and impellers. For typical cooling tower duty cycles, service intervals are 2–3 times longer than equivalent AC fan units.

4. Smart system integration:

Compatible with 0-10V / PWM control signals, the fans can seamlessly integrate with building management systems (BMS) and cooling tower control loops for fully automated, demand-driven operation, with no need for additional external frequency converters.

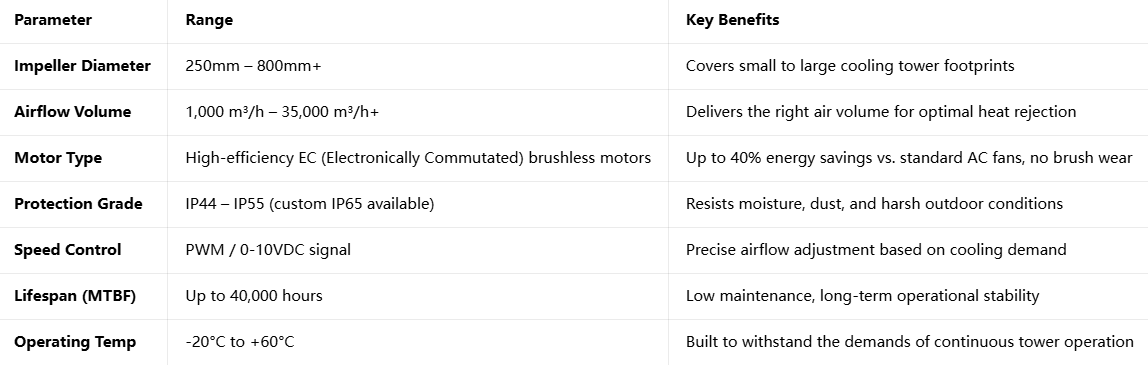

Core Specifications Comparison: 3 Flagship Krubo EC Axial Fans for Cooling Towers

To help you quickly identify the right fit for your system, below is a side-by-side comparison of our three most widely deployed cooling tower fan models, with full verified factory-tested specifications:

Note: Custom configurations for blade material (plastic, steel, aluminum) and enhanced corrosion protection coatings are available upon request for harsh industrial or coastal environments.

Model Deep Dive: Unique Strengths & Ideal Use Cases

Each model in our cooling tower fan lineup is engineered for a specific operational profile, ensuring you get optimal performance without over-investment in oversized or over-specified equipment.

1. K-EC500-W230-15: Compact Power for Space-Constrained Systems

Core competitive strengths:

· Easy deployment with single-phase power:

The 230V single-phase design eliminates the need for three-phase wiring upgrades, making retrofits and small-system installations fast and cost-effective — especially for older commercial buildings with limited power infrastructure.

· Industry-leading airflow density:

Delivers nearly 9000 m³/h of airflow from a 500mm footprint, thanks to optimized backward-inclined blade geometry developed by our German aerodynamics team. It delivers equivalent cooling capacity to many 560mm AC fans in a smaller mounting size.

· Quiet, plug-and-play operation:

Low acoustic output and simplified mounting minimize disruption to commercial and light industrial environments, with no external drive hardware required for basic speed control.

Ideal for: Small packaged cooling towers, rooftop condenser units, light commercial HVAC systems, and retrofit projects where on-site power is limited to single-phase supply.

2. K-EC630-W400-12: The Balanced Workhorse for Mainstream Industrial Cooling

Core competitive strengths:

· Optimal performance balance:

Best-in-class equilibrium of airflow, static pressure, and energy efficiency makes it the most widely selected model for standard industrial cooling tower retrofits and new builds.

· Extreme temperature resilience:

A -25℃ to +65℃ operating range supports uninterrupted year-round operation in nearly all climate zones, maintaining stable output even during sustained peak summer heat loads.

· Environmentally hardened design:

IP54 protection provides robust defense against moisture, drift water, and dust inherent to cooling tower operating environments, reducing motor failure rates in humid and dusty locations.

· Demand-driven efficiency:

Integrated stepless speed control automatically adjusts output to match cooling load, eliminating wasted energy during low-demand periods and seasonal operation without external VFD hardware.

Ideal for: Mid-sized industrial cooling towers, commercial refrigeration systems, air handling units (AHU), and process cooling systems with variable heat loads.

3. K-EC800-W400-09: Heavy-Duty Performance for Large-Scale Cooling

Core competitive strengths:

· High-capacity heat rejection:

17437 m³/h of maximum airflow handles the highest heat rejection demands, reducing the total number of fans required for large cooling tower banks and cutting installation, wiring, and maintenance complexity.

· Low-speed, long-life design:

The 960 RPM low-speed aerodynamic design delivers steady static pressure with reduced noise and mechanical wear. Impellers are balanced to G2.5 precision grade, purpose-engineered for 24/7 continuous operation with minimal vibration stress on bearings.

· Heavy-duty corrosion resistance:

Robust construction with optional corrosion-resistant materials and epoxy coatings withstands long-term exposure to humid, chemically active cooling tower environments, including coastal and chemical park installations.

· Minimized lifecycle downtime:

Lower rotational speed extends bearing and component service life, reducing scheduled maintenance frequency and unplanned downtime for large critical facilities where cooling interruption carries high operational costs.

Ideal for: Large industrial cooling towers, central chiller plants, power generation cooling systems, data center cooling infrastructure, and heavy process cooling applications.

Beyond the Product: The Krubo Advantage for Cooling Tower Operators

With over a decade of specialized experience in industrial fan design and manufacturing, Krubo combines German engineering standards with cost-efficient local production at our Tianjin facility to deliver solutions that perform in the world’s harshest operating conditions. All models undergo full performance calibration and 100+ hour continuous runtime testing before shipment, carry CE certification, and are backed by a 1-year standard warranty and global technical support network.

Lower Total Cost of Ownership, Year After Year

While EC fans carry a modestly higher upfront cost than basic AC fans, Krubo’s efficiency gains typically deliver full payback within 12–24 months through reduced electricity bills and lower maintenance spending, based on real-world retrofit project data. Over a typical 10-year service life, operators can expect cumulative energy and maintenance cost savings of 40% or more compared to conventional AC fan systems.

We also offer end-to-end project support: our application engineering team provides custom fan sizing calculations, corrosion protection recommendations, and control system integration guidance to ensure optimal performance for your specific cooling tower design and operating conditions.

Ready to upgrade your cooling tower efficiency and reliability? Reach out to our technical team for custom sizing, project pricing, or application engineering support, or explore our full EC axial fan range at en.krubofan.com

Why choose us?

1.Remarkable Energy Saving EC Technology

Brushless EC motors support automatic stepless speed adjustment matching real cooling loads, cutting power consumption by 35%–55% vs fixed-speed AC fans. Compatible with 0–10V/PWM signals for direct BMS connection without extra frequency converters.

2.Full Range of Sizes for All Cooling Tower Scenarios

·K-EC500-W230-15: 500mm 230V single-phase, for small cooling towers & single-power retrofits

·K-EC630-W400-12: 630mm 400V three-phase, IP54 wide temp range, mainstream industrial cooling workhorse

·K-EC800-W400-09: 800mm 400V three-phase, high airflow low speed, for large chillers & data center cooling

Custom anti-corrosion blades and coatings available for coastal/chemical sites.

3.Minimal Maintenance & Longer Service Life

Brushless design removes carbon brush wear; service cycles 2–3 times longer than AC fans. G2.5 balanced impellers and IP54 dust/moisture protection slow mechanical wear, avoiding costly unplanned downtime.

4.German R&D + Strict Factory Quality Control

Aerodynamic blades designed by Düsseldorf lab, manufactured in Tianjin plant. All fans pass 100+ hours continuous testing with CE certification, stable in -25℃ to 65℃ extreme climates.

5.Low Total Cost & One-Stop Project Support

Full ROI within 12–24 months; over 40% total cost savings over 10 years. We provide fan sizing, anti-corrosion schemes, control integration guidance, 1-year warranty and global technical service.

Conclusion:

Cooling tower fans consume over 60% of system power, while traditional AC fans waste energy and suffer frequent breakdowns from humid, dusty and corrosive environments.

Krubo’s three EC axial fan models solve these pain points with intelligent load-based speed control, robust all-weather durability and customized specifications covering small commercial to large industrial cooling towers. Built with German aerodynamic technology and rigorous factory testing, our fans slash energy use by 35%–55% and drastically cut maintenance frequency.

Despite slightly higher upfront cost, the 12–24 month payback period and decade-long cost savings deliver outstanding long-term value. We offer full engineering support for new builds and retrofits. For facilities aiming to lower power bills and boost cooling stability, Krubo EC axial fans are the ideal upgrade solution. Reach our team for customized sizing and quotations.
